Steel Smith Toggle Clamp PAH-1725

Steel Smith Toggle Clamp PAH-1725 – Pull Action Latch Clamp for High-Security Locking Applications

Secure | Compact | High Holding Power | Ideal for Molds, Fixtures & Enclosures

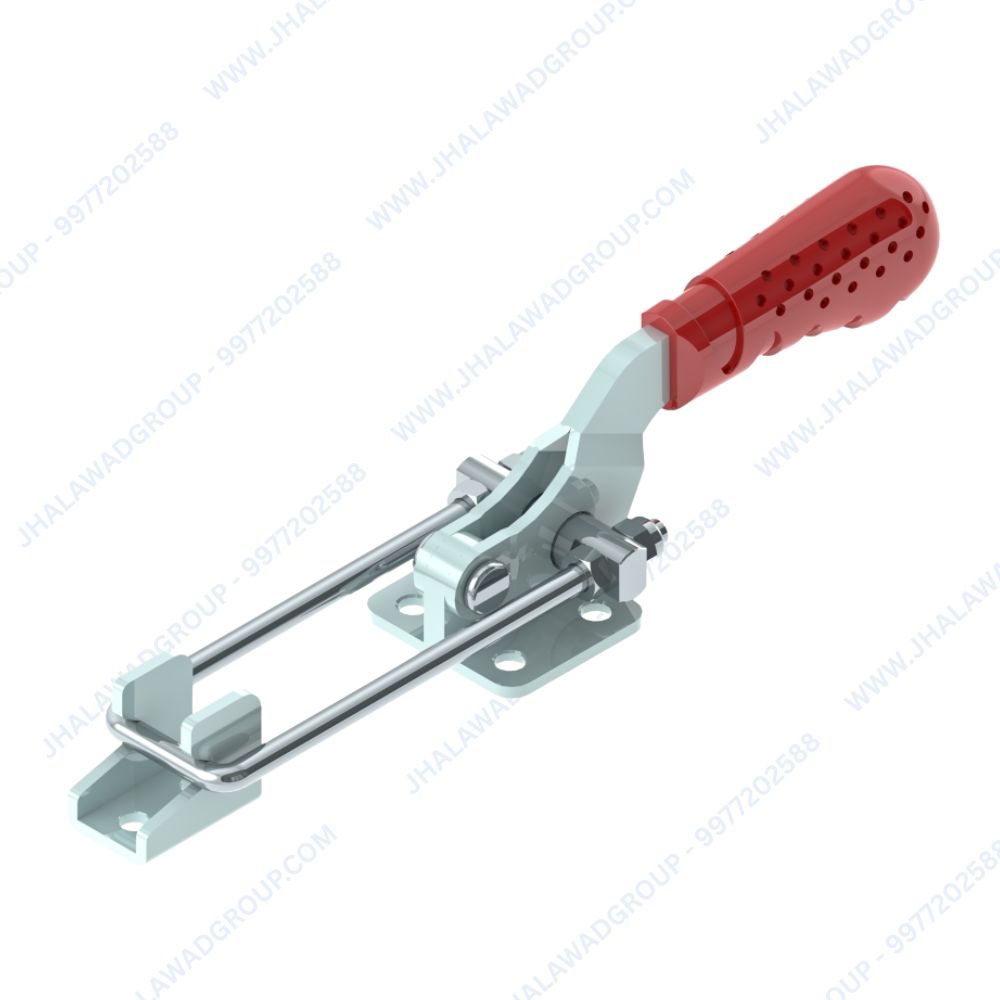

The Steel Smith PAH-1725 Pull Action Toggle Clamp is a high-strength latch-type clamp designed for applications where parts need to be pulled and held securely together in a closed position. This includes locking doors, molds, lids, panels, and fixture plates. Part of the PAH-Series, this model offers straight-line action with a compact footprint and excellent clamping force, making it ideal for both industrial and workshop use.

Crafted by Steel Smith, India’s top manufacturer of toggle clamps, the PAH-1725 offers a holding capacity of 5.20 kN, providing a reliable and rigid hold that doesn’t loosen under load or vibration. The pull action mechanism creates a consistent closing force, and the 180° handle opening allows full lever movement for easy locking and release.

🔧 Why Choose Steel Smith PAH-1725?

• Designed for use in straight-line pulling applications, it offers strong mechanical advantage and precision control over closing force.

• Its compact design and straight base allow easy installation on doors, fixture plates, or flat surfaces.

• Used extensively in mold setups, container closures, inspection covers, and machine enclosures where consistent, strong, and repeatable closure is essential.

📐 Key Features & Benefits

• ✅ Pull Action Clamping – Straight-line motion ideal for enclosure locking and fixture latching

• ✅ Strong Holding Power – Withstands up to 5.20 kN of force

• ✅ Zinc Plated / Powder Coated – Industrial finish for rust resistance and long life

• ✅ 180° Handle Movement – Full opening allows smooth latch-on and release

• ✅ Compact & Lightweight – Just 0.430 kg, ideal for portable or space-constrained applications

• ✅ Supplied With CL-1413 – Ready to install with matching catch plate

📊 Technical Specifications

🛠️ Typical Applications

• 🧲 Mold Closures – Keep mold halves tightly locked during processing

• 🪛 Electrical Panel Doors & Lids – Secure access covers under vibration

• 🏗 Welding Fixtures – Lock components quickly and rigidly

• 🧪 Inspection Enclosures – Temporary but tight closures

• 🔧 Assembly & Testing Jigs – Used to hold interchangeable parts in place

• 🚪 Toolbox & Machine Covers – Pull-to-lock solutions with quick release

💡 Usage Tips

1. Ensure latch and catch are perfectly aligned for maximum holding power.

2. Use both mounting holes to prevent rotational movement or loosening.

3. Regularly clean and oil pivot joints to maintain smooth operation.

4. Avoid excessive force beyond rated 5.20 kN to ensure long-term durability.

5. Keep a few spare catch plates (CL-1413) for quick setup changes.

📦 Packaging

Each unit is individually packed with the required latch plate (CL-1413) and labeled clearly for stock management. Bulk orders are securely boxed and ready for dispatch.

🏁 Conclusion

The Steel Smith PAH-1725 Toggle Clamp is a compact yet powerful pull-action clamp built to deliver secure closure and repeatable results. Whether you’re locking down molds, panels, or mechanical assemblies, this clamp ensures rigid, consistent holding with the trusted quality of the Steel Smith brand.

Perfect for OEMs, fixture designers, and toolrooms, the PAH-1725 is a smart investment in safety, reliability, and performance.
