Steel Smith Verticle Toggle Clamp VTC-4595-UB

Steel Smith Vertical Toggle Clamp VTC-4595-UB

Compact, Reliable & Adjustable Clamp – Perfect for Jigs, Fixtures & Industrial Use

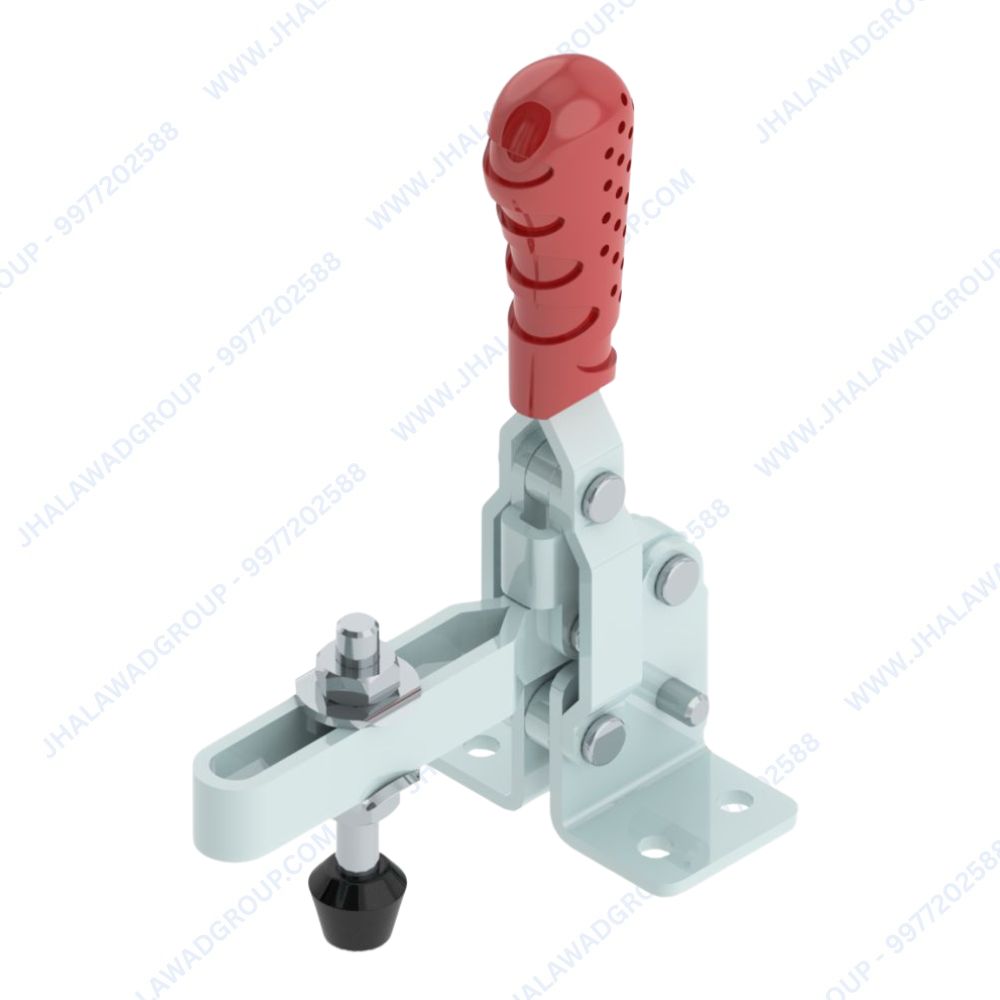

The Steel Smith Vertical Toggle Clamp VTC-4595-UB is a versatile and compact U-bar style vertical toggle clamp designed for medium-duty clamping applications. This model is engineered with user-friendly features and dependable performance, ideal for professionals in woodworking, welding, inspection, and manufacturing processes.

Manufactured by Steel Smith, India’s leading toggle clamp brand, the VTC-4595-UB offers high clamping efficiency in a small footprint. The U-bar clamping arm allows adjustable spindle positioning, making it adaptable for a wide range of jig and fixture designs.

🔧 Why Choose Steel Smith VTC-4595-UB?

• The U-Bar clamping arm enables you to customize the clamping point using adjustable spindles, offering flexibility in setup.

• Its flanged base makes it easy to mount securely onto any flat surface or jig plate.

• With a compact design and a high holding capacity of up to 1.80 kN, this clamp is perfect for high-cycle applications in limited spaces.

Whether you’re holding components for drilling, welding, gluing, or machining — this clamp delivers consistent performance and ergonomic operation.

📐 Key Features & Benefits

• ✅ Vertical Handle – Easy to operate and locks the clamping bar securely in place

• ✅ U-Bar Arm Style – Allows flexible spindle positioning

• ✅ Medium Duty Capacity – Suitable for a wide variety of workshop and production tasks

• ✅ Zinc Plated Steel Body – Resists corrosion and adds to long-term durability

• ✅ Compact Size – Saves space without compromising on strength

• ✅ Quick Clamping/Unclamping – Increases productivity and safety

• ✅ Supplied with RT-1060-2N spindle – Ready to use out of the box

• ✅ Precision-Fit Construction – Smooth pivot and consistent pressure

📊 Technical Specifications

🛠️ Common Applications

The VTC-4595-UB is ideal for:

• 🛠 Jigs and Fixtures – Ensures reliable work holding in repetitive tasks

• 🧰 Machining Operations – Holds components securely during light milling or drilling

• 🪚 Woodworking – Used in furniture assembly and routing setups

• 🔧 Metal Fabrication – Clamps sheet metal and components for welding or cutting

• 🧪 Testing & Inspection Stations – Ensures stable positioning for measurement and testing

💡 Usage Tips

1. Mount the clamp using all flange holes to ensure stability.

2. Adjust the spindle position for desired holding height and clamping pressure.

3. Clean clamp regularly to avoid residue build-up in pivot points.

4. Apply light oil to moving parts to maintain smooth motion and extend life.

5. Do not exceed specified holding capacities to avoid damage.

📦 Packaging & Availability

Each VTC-4595-UB clamp is individually packed with spindle and labeled for easy stock identification. Bulk packaging options are available for OEMs and fixture manufacturers.

🏁 Conclusion

If you’re looking for a compact, durable, and versatile toggle clamp, the Steel Smith VTC-4595-UB is a top choice. Whether you’re outfitting a single jig or building a high-volume production line, this clamp provides consistent performance, easy operation, and superior quality trusted by professionals across India.
